What’s Included in a UFH CAD Design Package
Our UFH CAD design service provides everything trade professionals need to install underfloor heating efficiently and with confidence. Each design package is produced in-house, calculation-led, and tailored to the specific project requirements.
We provide design only — independent of products, suppliers or system sales.
A Complete Design Package for Installation
Every UFH CAD design we deliver is created with site practicality and system performance in mind.
Typical inclusions are outlined below.

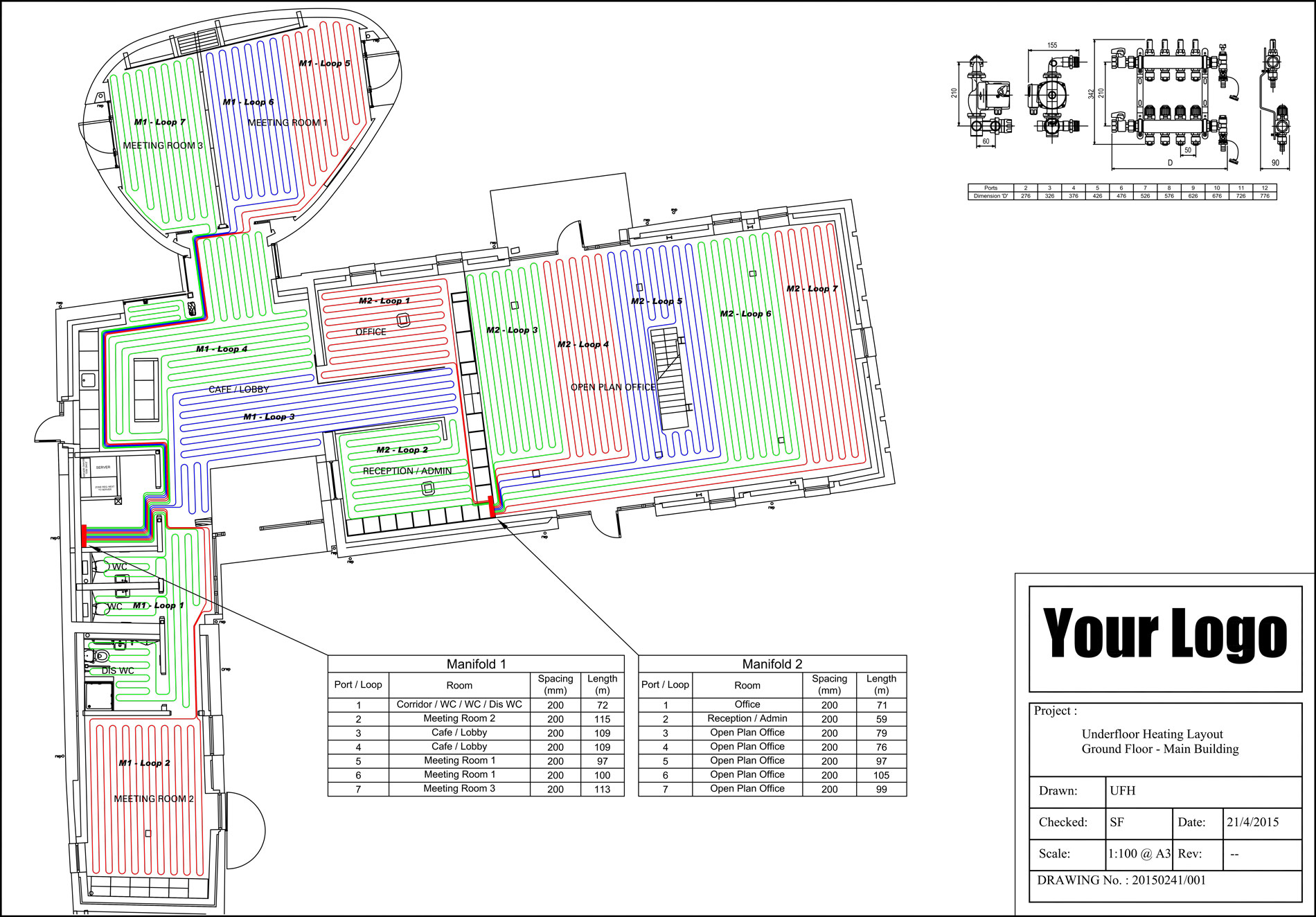

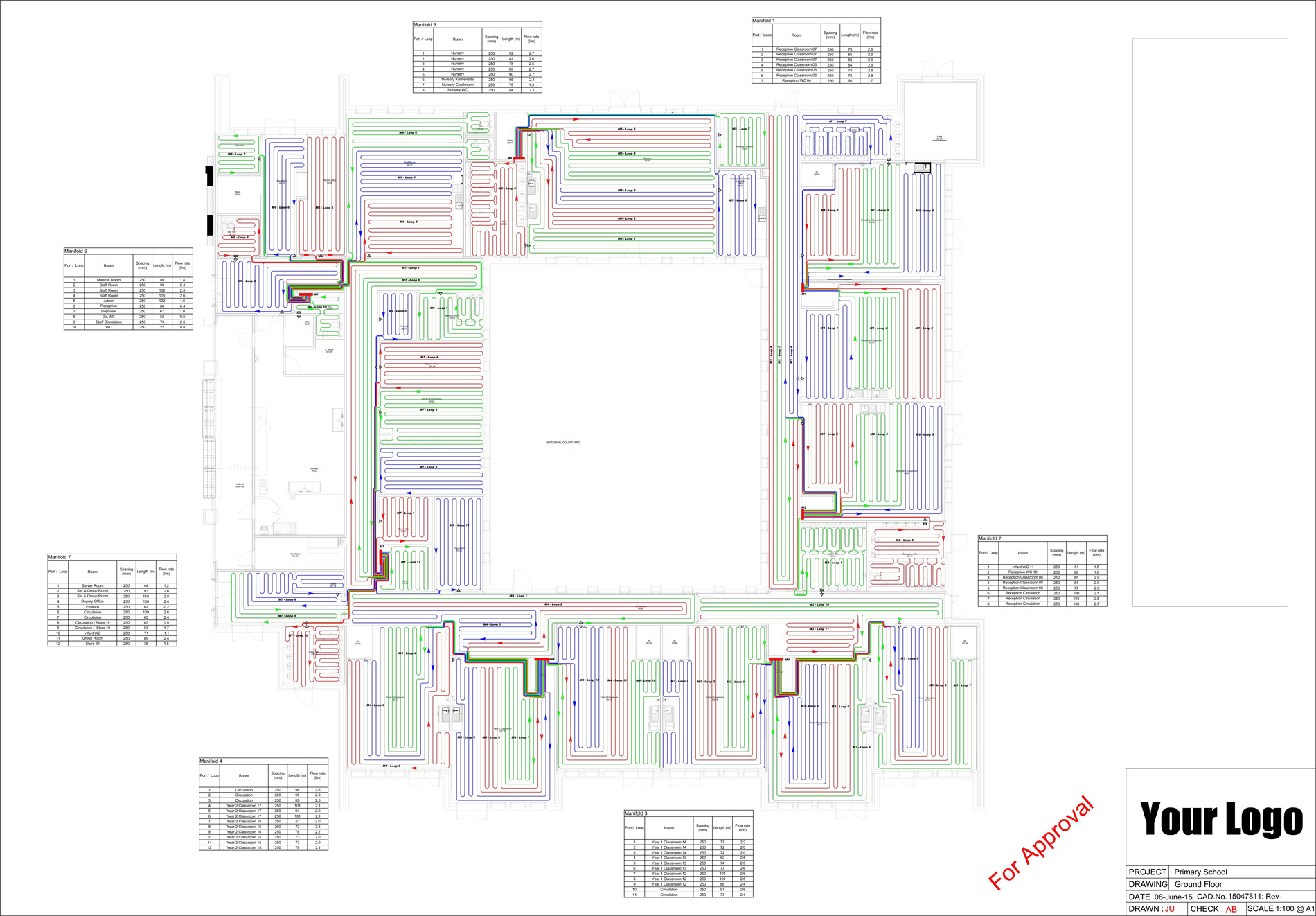

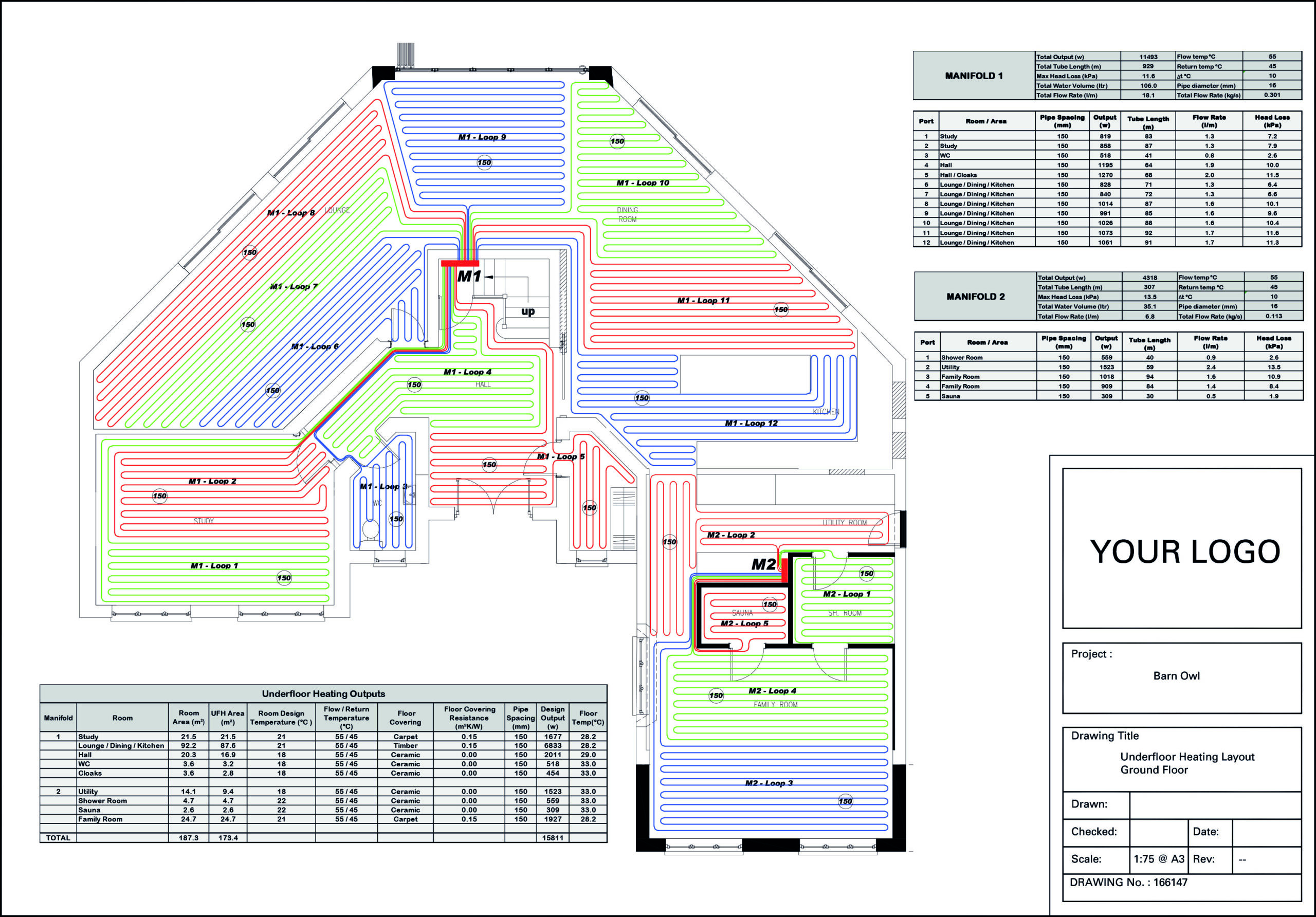

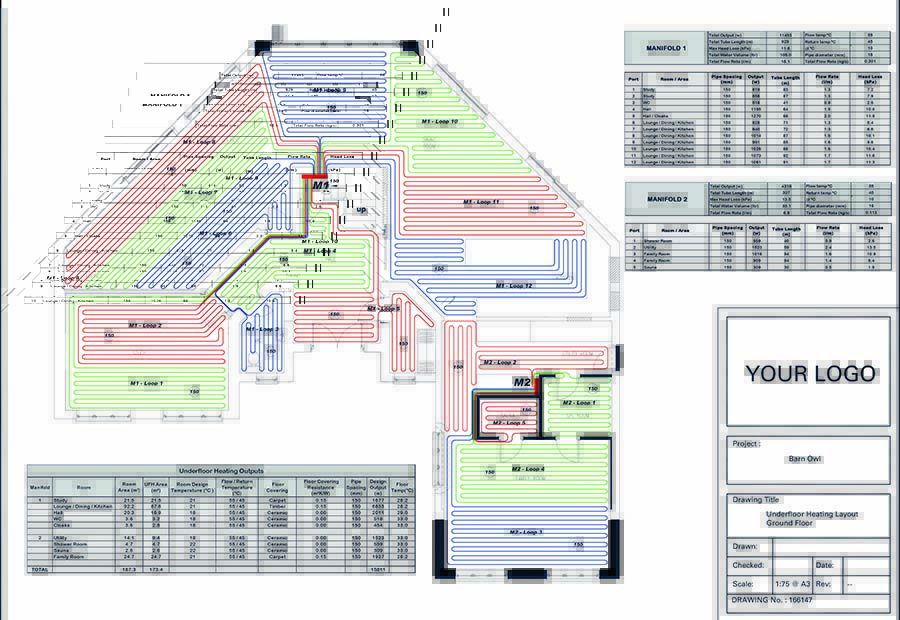

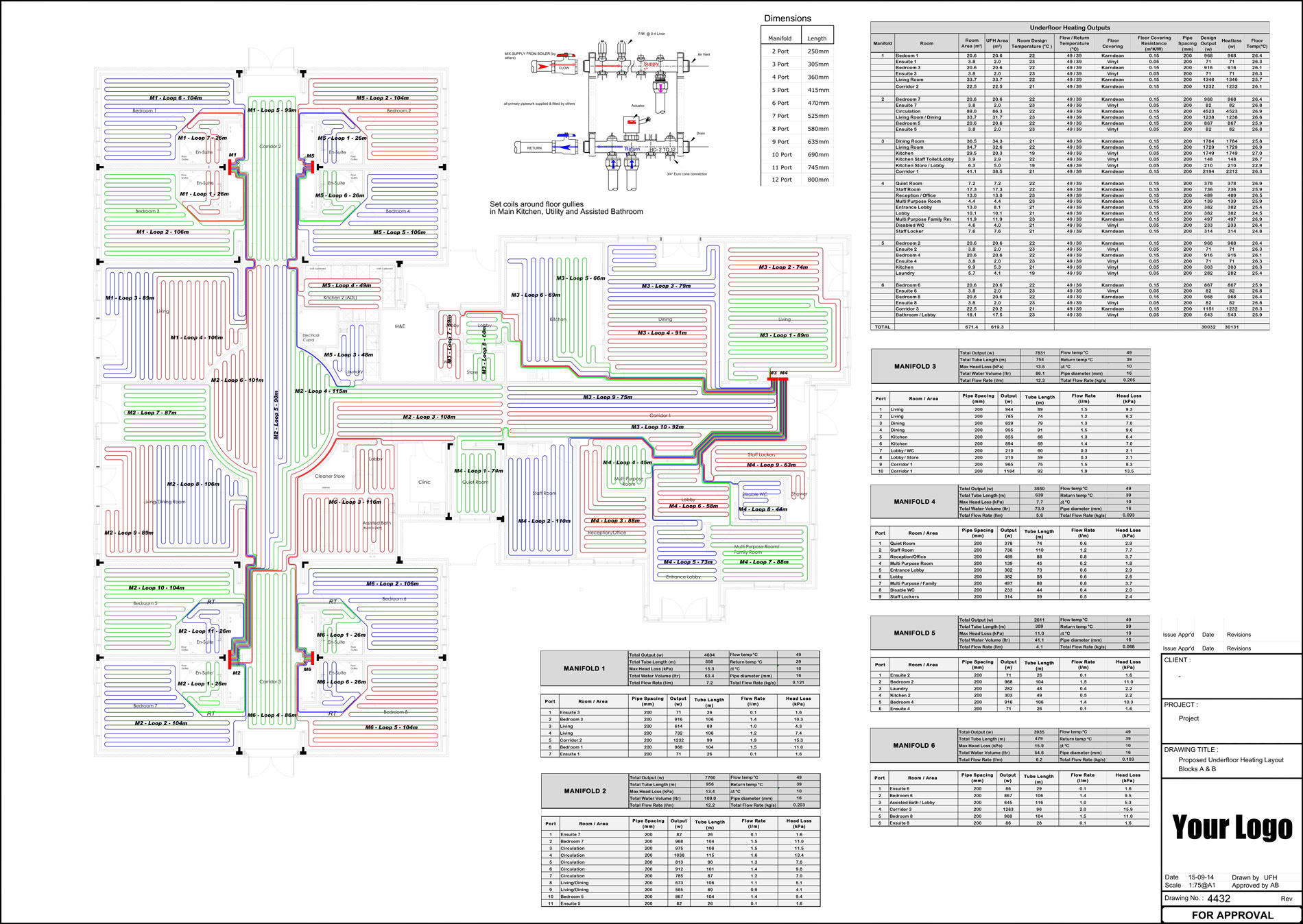

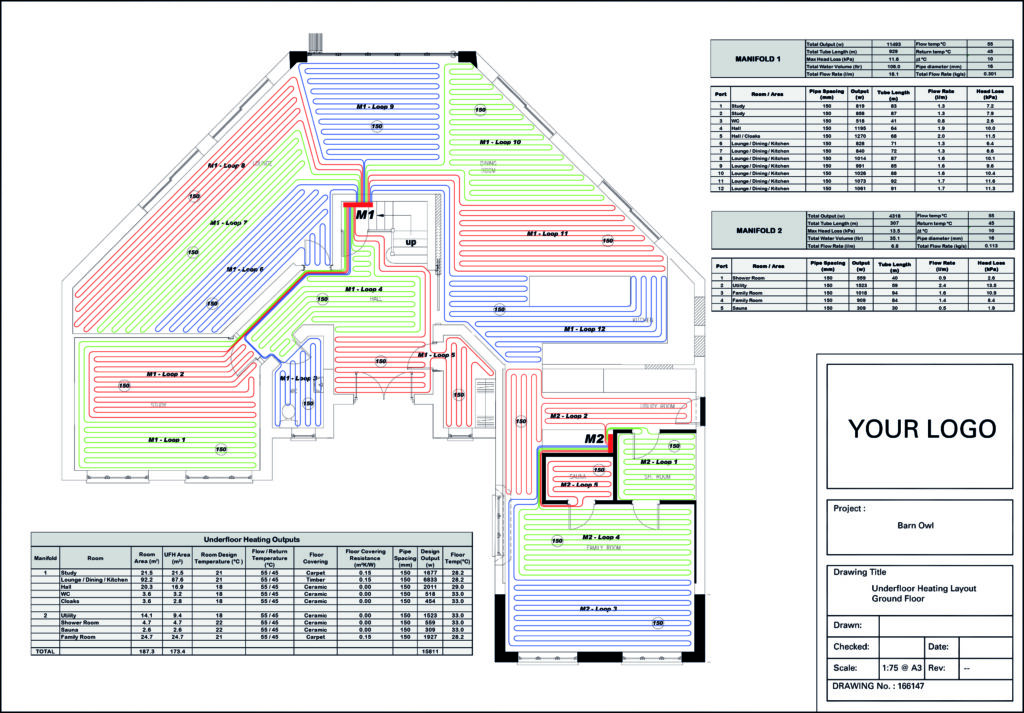

UFH Pipe Layout CAD Drawings
We supply clear, installer-friendly CAD layouts showing:
- pipe routing
- flow rates
- kpa
- spacing and coverage
- room-by-room design structure
Layouts are engineered — not generic templates.
Zoning & Circuit Planning
Where required, designs include:
- zone separation
- circuit grouping
- control layout considerations
This ensures efficient heating management and practical installation.
Manifold Positioning & Routing
We provide layouts showing:
- manifold locations
- circuit connections
- logical routing to minimise complexity on site
Output & Performance Calculations
All designs are supported by professional calculations in accordance with BS EN1264 and CIBSE Standards.
Calculation methods are not published — designs are delivered as a professional service.
Domestic & Commercial Applications
We design UFH systems for:
- domestic floors
- commercial buildings
- new builds
- retrofit projects
Trade Only Service
Our design packages are produced exclusively for trade clients.
We do not provide services for homeowners, self-builders or DIY installations.
