Underfloor Heating Pipe Layout Design for Domestic & Commercial Projects
Professional Underfloor Heating pipe layout design is about far more than drawing pipes on a floor plan. Correct spacing, zoning and circuit layouts are critical to system performance, installation efficiency and long-term reliability.
We provide trade-focused UFH pipe layout CAD drawings, designed in-house in accordance with BS EN1264 and CIBSE Standards and tailored to the specific requirements of each project — whether domestic or commercial, new build or retrofit.
What Underfloor Heating Pipe Layout Design Involves
- room usage
- floor construction and build-up
- zoning and control requirements
- practical installation constraints
- efficient circuit and manifold layouts
- floor finish surface temperatures
This ensures the finished system delivers consistent performance and is straightforward to install on site.
How Underfloor Heating Pipe Layout Design Is Calculated
Underfloor heating pipe layout design is not simply based on standard spacing or generic templates. Each layout must be calculated to suit the specific requirements of the project.
Key factors considered in pipe layout design include:
- heat output requirements for each room
- floor construction and build-up
- pipe spacing and circuit lengths
- zoning and control strategy
- system flow and performance requirements
These elements work together to ensure the system delivers consistent heat distribution and operates efficiently once installed.
Layout decisions are always based on calculated demand rather than assumptions, helping to avoid issues such as cold spots, uneven heating or inefficient system performance.

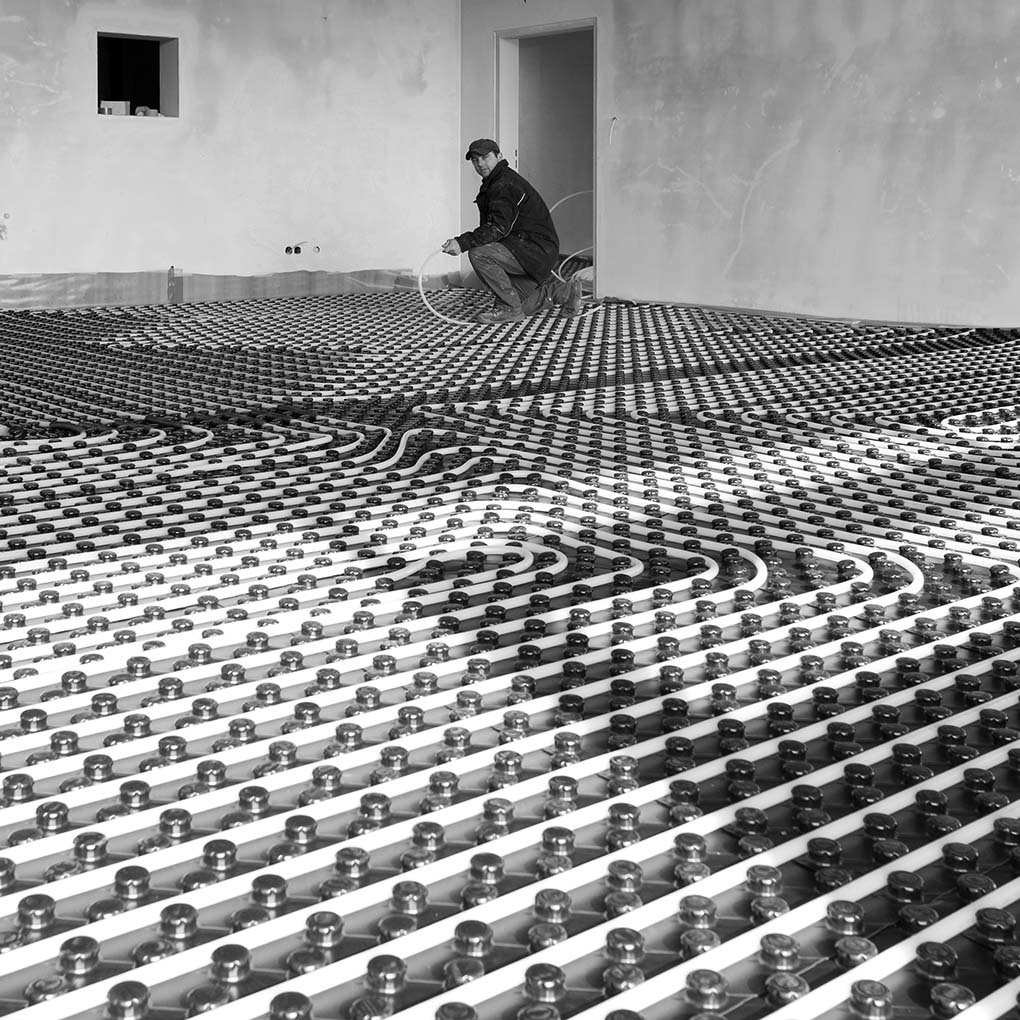

Pipe Layout Options Explained (Without Guesswork)
There is no single “standard” underfloor heating pipe layout that works for every project.
Depending on the application, layouts may vary based on:
- room shape and size
- domestic vs commercial use
- retrofit limitations
Our designs are engineered, not templated, and are produced to suit the specific conditions of each floor — avoiding generic or rule-of-thumb layouts
What is the best pipe layout for underfloor heating?
There is no single “best” layout that suits every project. The most appropriate pipe layout depends on factors such as room size, heat demand, floor construction and system design requirements.
Professional UFH CAD design ensures layouts are calculated correctly for each individual floor rather than relying on generic patterns.
Designed to British Standards
- predictable system performance
- consistency across projects
- confidence for installers, contractors and clients
- suitability for professional and commercial applications
Design decisions are based on calculated requirements — not assumptions.
What You Receive

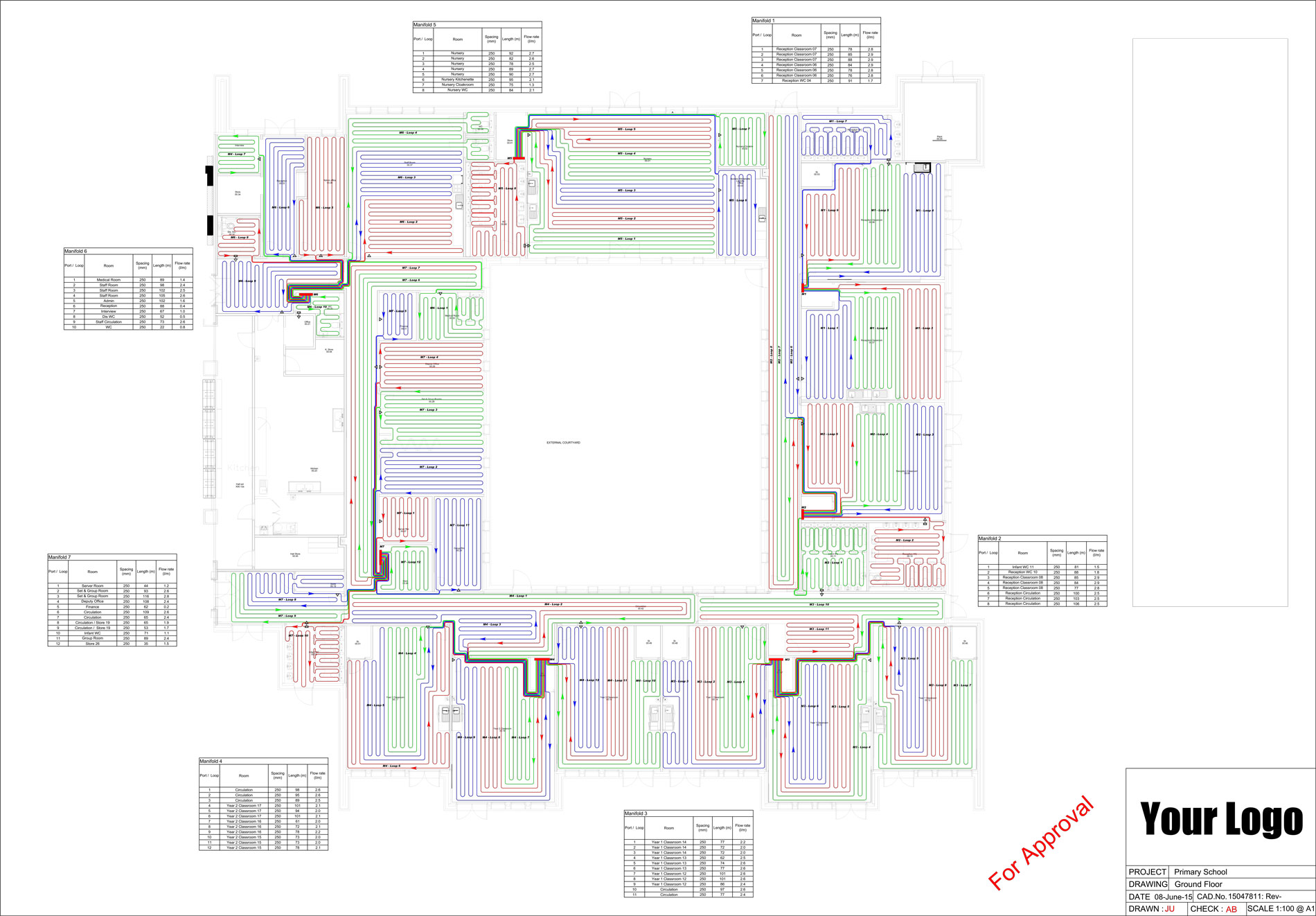

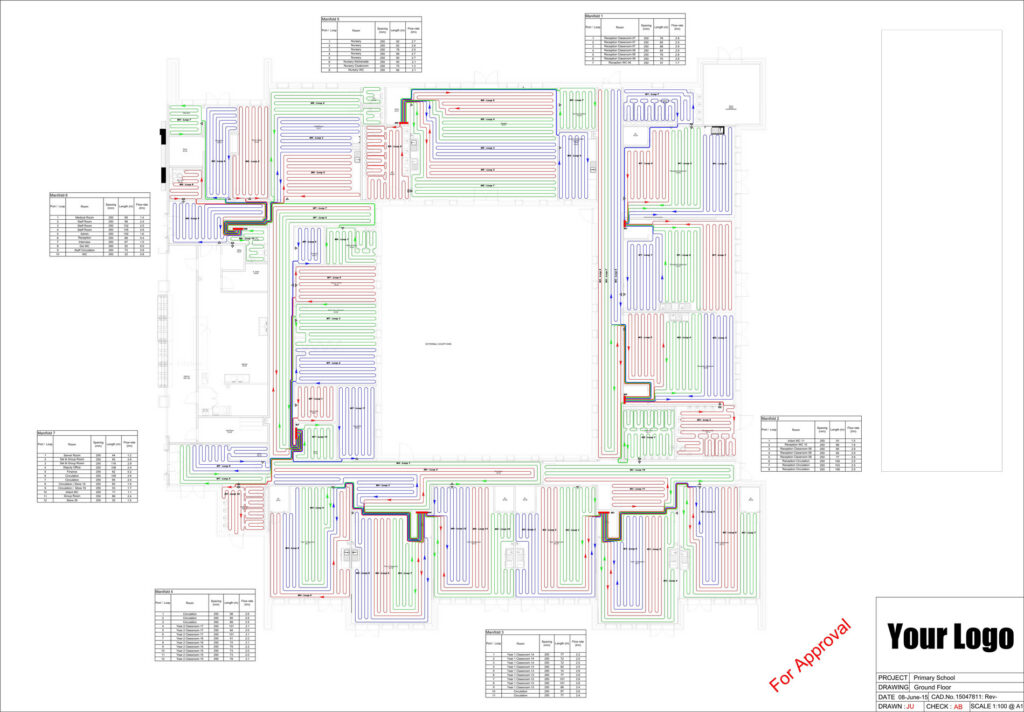

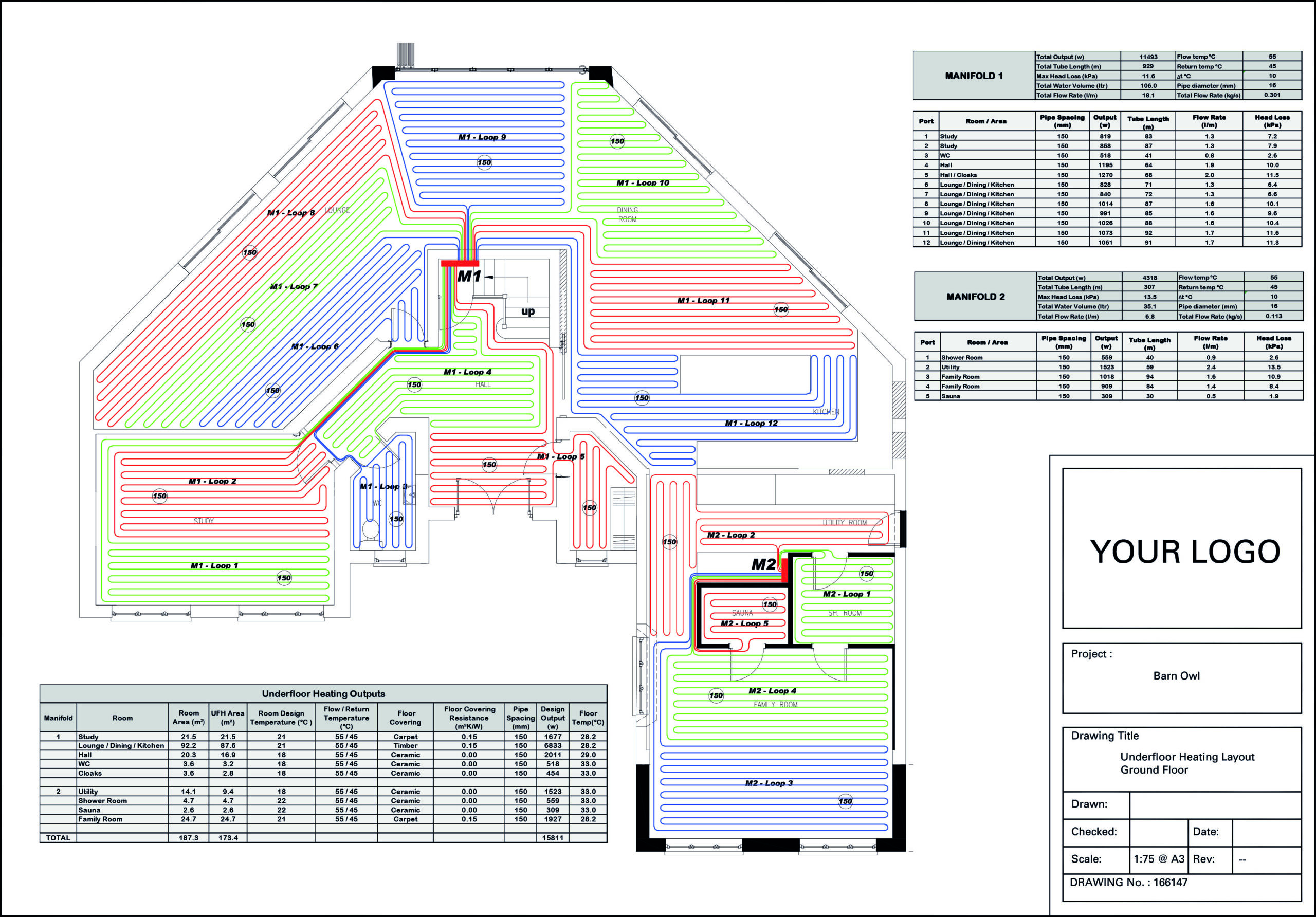

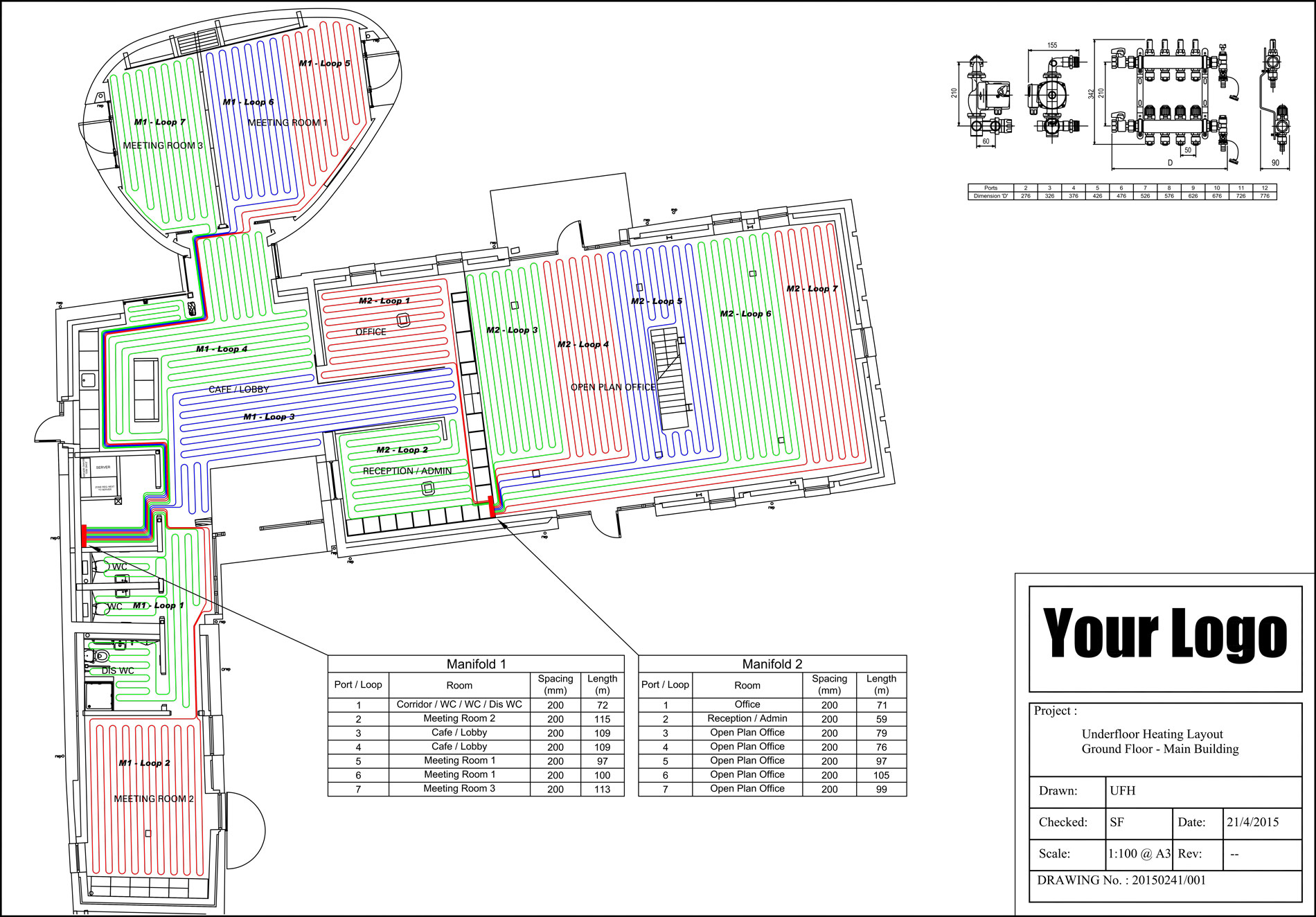

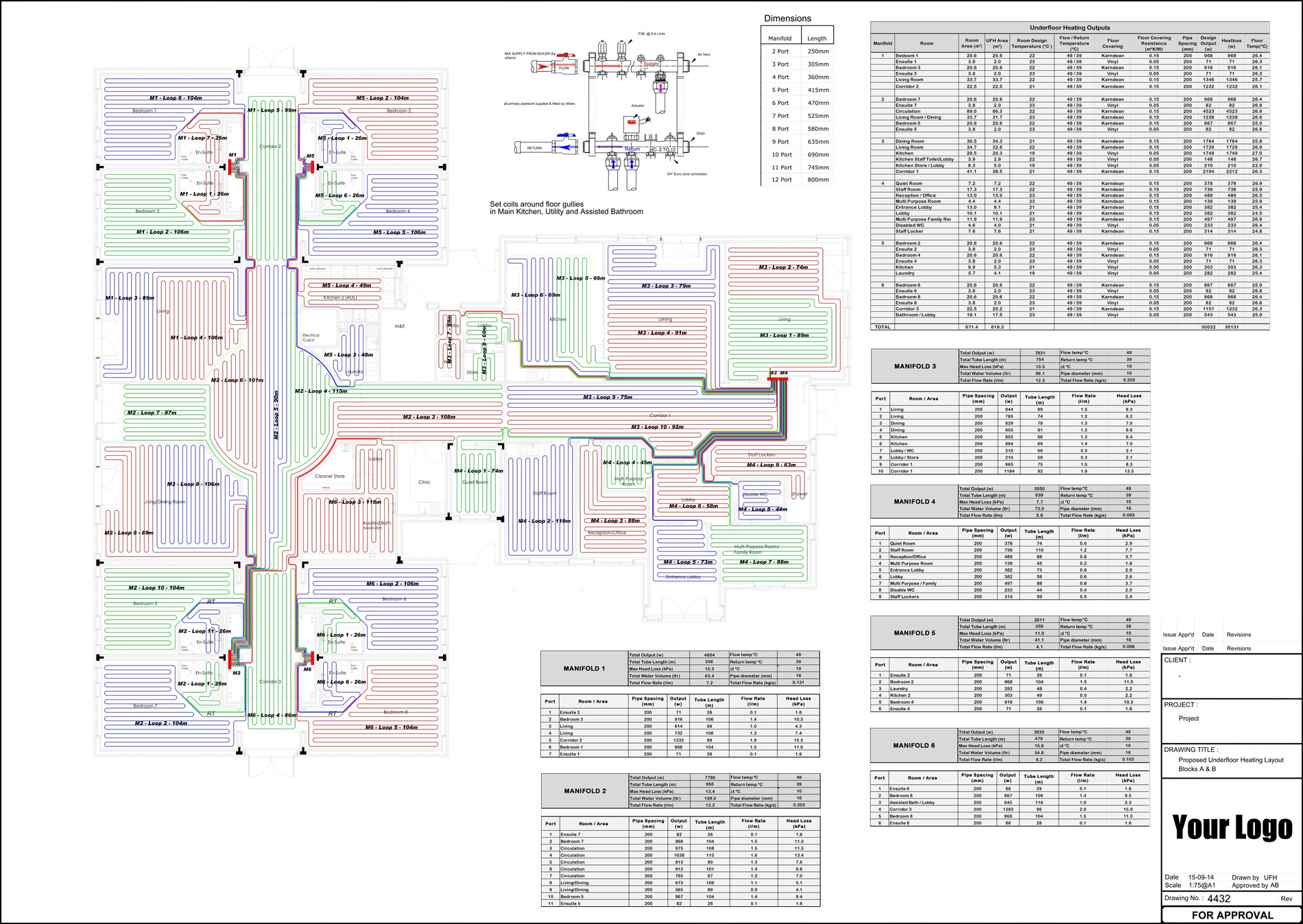

- CAD pipe layout drawings
- clear zoning layouts
- manifold positioning and circuit routing
- flow rates
- kpa
Drawings are produced to be installer-friendly, reducing site queries and last-minute changes.
Who This Service Is For
This service is designed exclusively for trade professionals, including:
- UFH System Suppliers
- UFH installers
- screeding companies
- contractors and developers
- UFH suppliers requiring independent layouts
It is not suitable for self-builders, homeowners or DIY projects.
Fast, In-House Delivery
Because all underfloor heating pipe layout design work is completed in-house by our UK-based team, we’re able to respond quickly when layouts are needed at short notice.
Many pipe layout designs are delivered on next-working-day basis, subject to information provided.
