Outsourced UFH CAD Design — In-House, UK-Based & White Label for Trade Professionals
If you need reliable outsourced UFH CAD design, delivered quickly and produced entirely in-house in accordance with BS EN1264 and CIBSE Standards, UFH CAD Designs acts as your external design department.
We provide white-label underfloor heating CAD design, pipe layouts and performance calculations for installers, screeding companies, contractors and UFH suppliers — without tying designs to specific products or systems.
What Outsourced UFH CAD Design Really Means
Outsourcing UFH CAD design shouldn’t mean compromising on quality, communication or accountability.
When you work with UFH CAD Designs, we effectively become an extension of your business — producing professional, client-ready UFH designs under your own brand, exactly when you need them.
Our outsourced service allows you to:
- avoid employing in-house CAD designers
- scale design capacity up or down as workload demands
- respond quickly to last-minute projects
- deliver professional UFH designs without product bias
All designs are produced by our UK-based, in-house team, ensuring consistency, speed and compliance.
Everything Is Designed In-House (Never Offshore)
One of our core principles is simple:
All UFH CAD design work is completed in-house — never outsourced offshore.
This matters because underfloor heating design is not just about drawing pipes. It requires:
- an understanding of UK building practices
- familiarity with British Standards
- clear communication with installers and screeders
- fast response when site conditions change
By keeping everything in-house, we ensure:
- consistent design quality
- clear accountability
- professional indemnity insurance
- faster turnaround times
- direct communication with the people doing the work
There are no overseas handovers, no time-zone delays and no third-party designers you’ll never speak to.
What’s Included in Our Outsourced UFH CAD Design Service
We provide a complete UFH design service, delivered as a professional package you can rely on.
Our outsourced UFH CAD design typically includes:

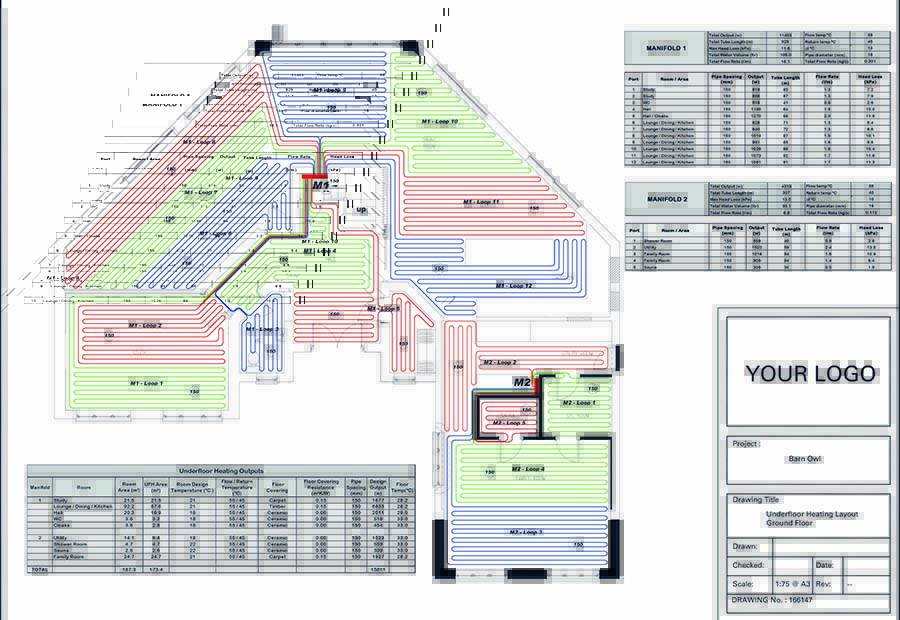

- UFH pipe layout CAD drawings
- Flow rates
- kpa
- Room-by-room zoning layouts
- Manifold positioning and circuit layouts
- Heat output and system performance calculations
- Designs suitable for domestic and commercial floors
- New build and retrofit projects
All designs are produced in accordance with relevant British Standards and best practice — without relying on rule-of-thumb layouts or generic templates.
White-Label UFH CAD Design
All outsourced UFH CAD design work can be supplied fully white-label.
This means:
- drawings can be issued under your company name
- no UFH CAD Designs branding is required
- documentation is ready to pass directly to your client or site team
This is particularly valuable for:
- screeding companies offering complete floor packages
- installers managing multiple projects
- contractors delivering turnkey solutions
- UFH suppliers needing independent design support
To your clients, we appear as part of your team — not a third party.
Independent of Any UFH System or Product
Unlike many “free” UFH design services, we do not supply products and are not tied to any manufacturer or system.
That means:
- designs are not influenced by product margins
- layouts are based on performance, not stock lines
- you remain free to choose the most suitable system for the project
Our role is simple:
to design underfloor heating systems properly — not to sell them.
Designed for Trade Professionals Only
Our outsourced UFH CAD design service is specifically built for trade clients managing real-world projects.
This service is ideal for:
- UFH System Suppliers
- Screeding companies
- UFH installers
- Mechanical & heating contractors
- Builders and developers
- UFH suppliers requiring white-label designs
By working exclusively with trade professionals, we keep the process efficient, commercially viable and focused on delivery — not hand-holding.
