UFH CAD Design for Contractors & Developers
UFH CAD Designs works with contractors and developers delivering both domestic and commercial projects, providing professional underfloor heating CAD layouts and output calculations as an outsourced, in-house service.
We provide independent design support that integrates smoothly into your build programme — with fast turnaround when required.
Professional UFH Design for New Build & Retrofit Projects
Contractors often require UFH designs that are:
- in accordance with BS EN1264 and CIBSE Standards
- suitable for multiple floor areas and zones
- coordinated with site timelines
- easy for installers and screeders to follow
We support projects ranging from single plots to larger commercial floors.
Independent, Design-Only Service
Unlike supplier-led “free designs,” we provide:
- product-neutral design
- independent specification support
- no system tie-in
- no product sales — design only
This allows contractors to maintain flexibility across suppliers and installers.
In-House Delivery & Fast Turnaround
Because all work is completed in-house, we provide:
- consistent quality
- direct communication
- reliable accountability
- rapid response for urgent site requirements
What You Receive
Our contractor support typically includes:

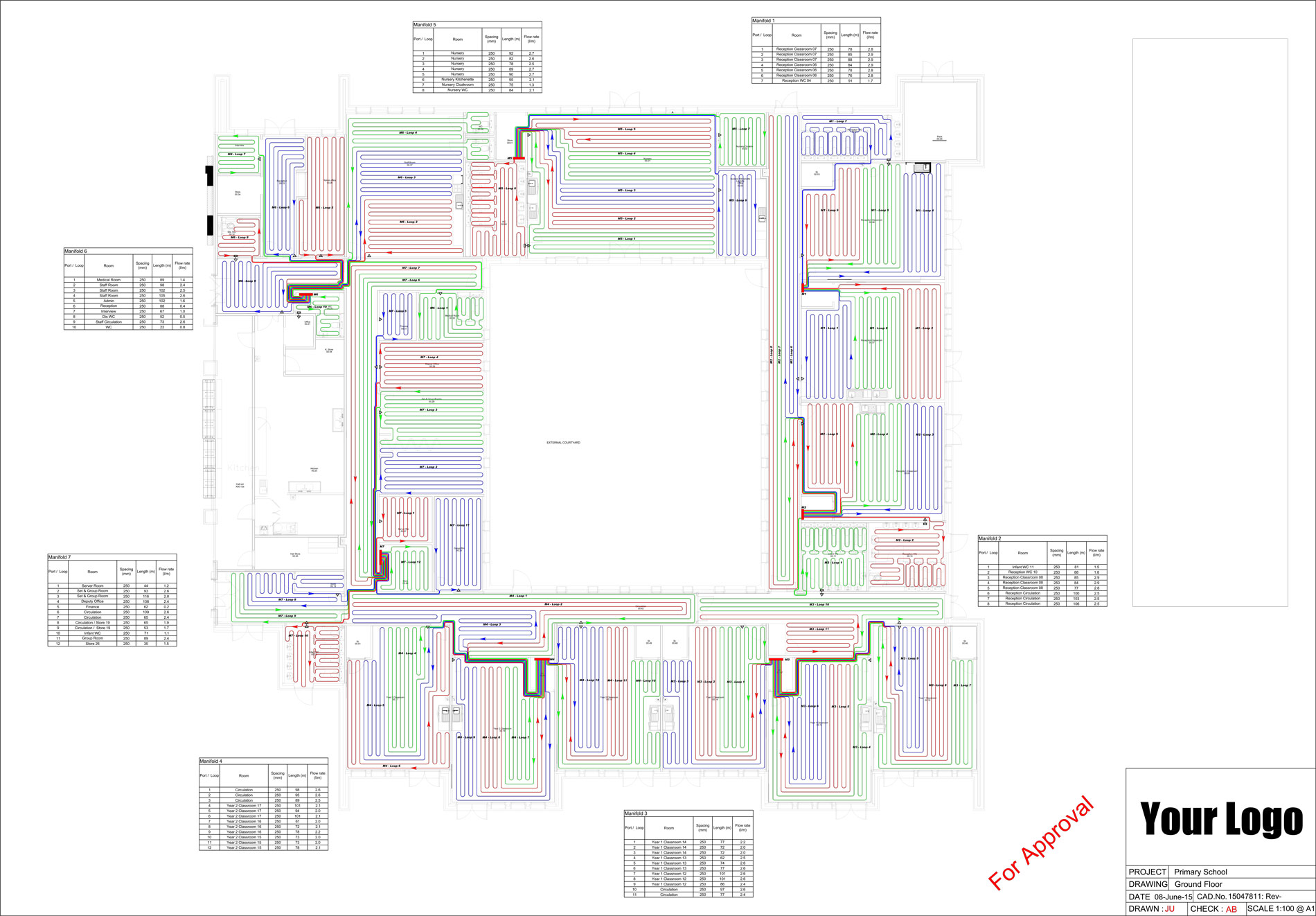

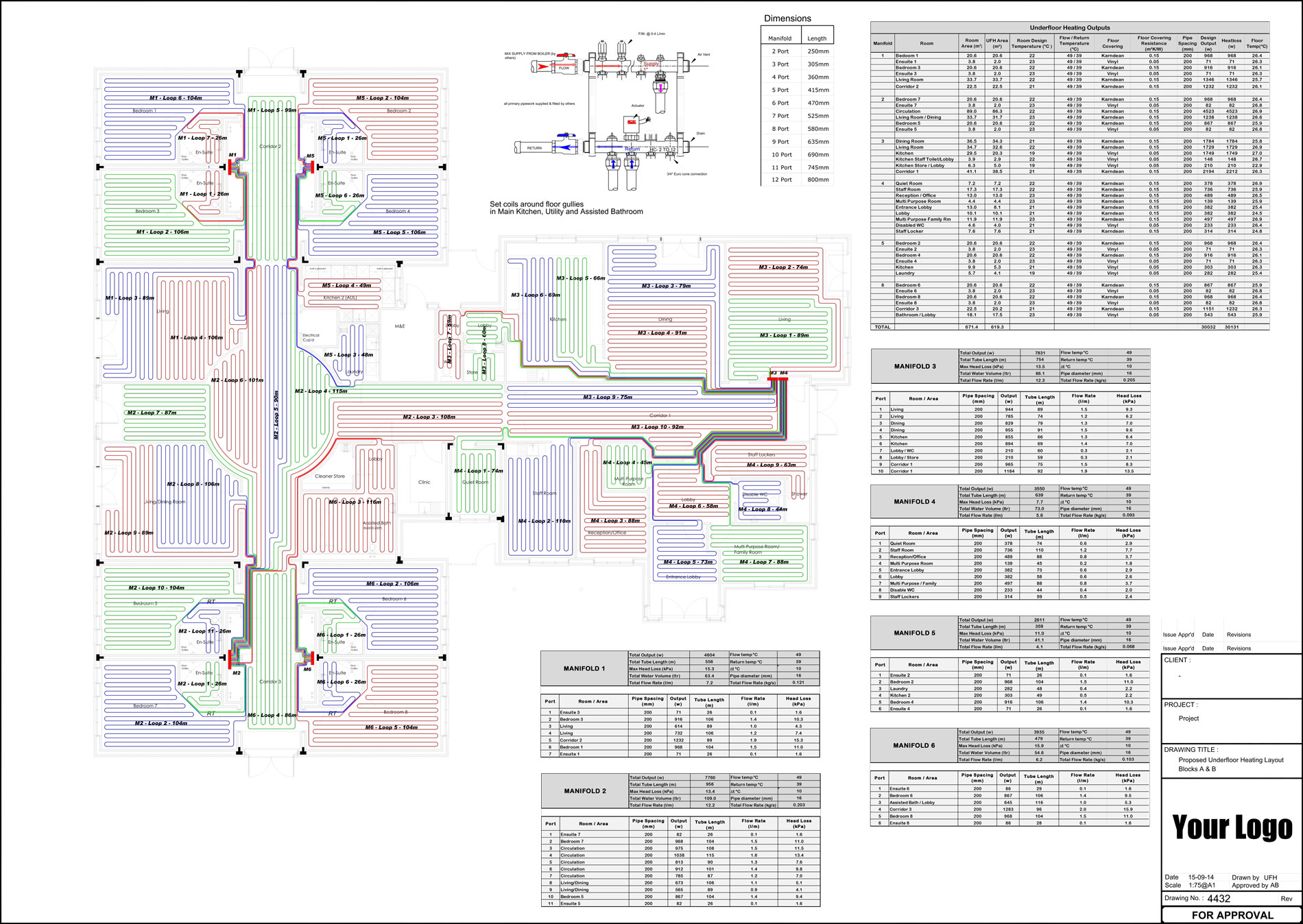

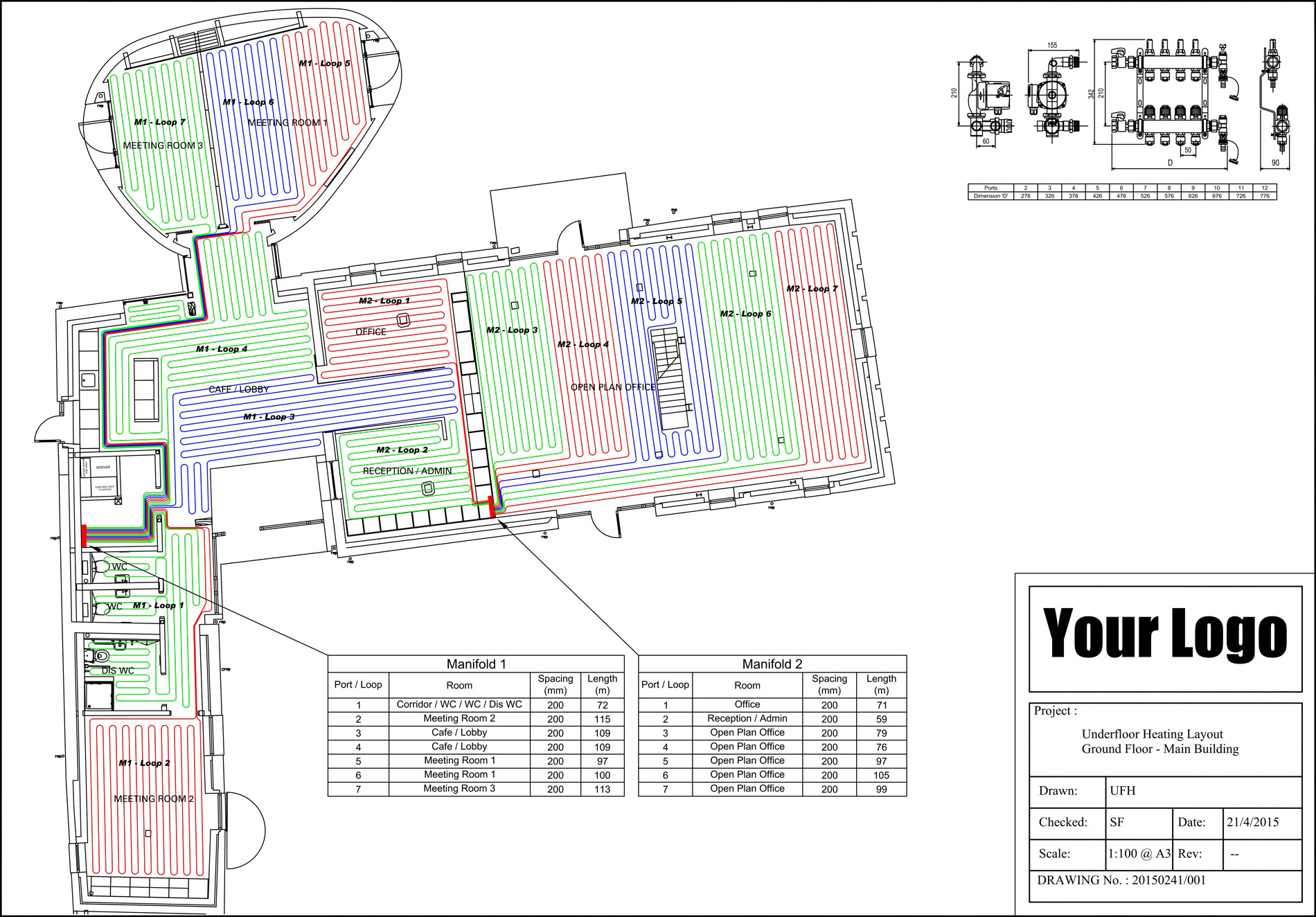

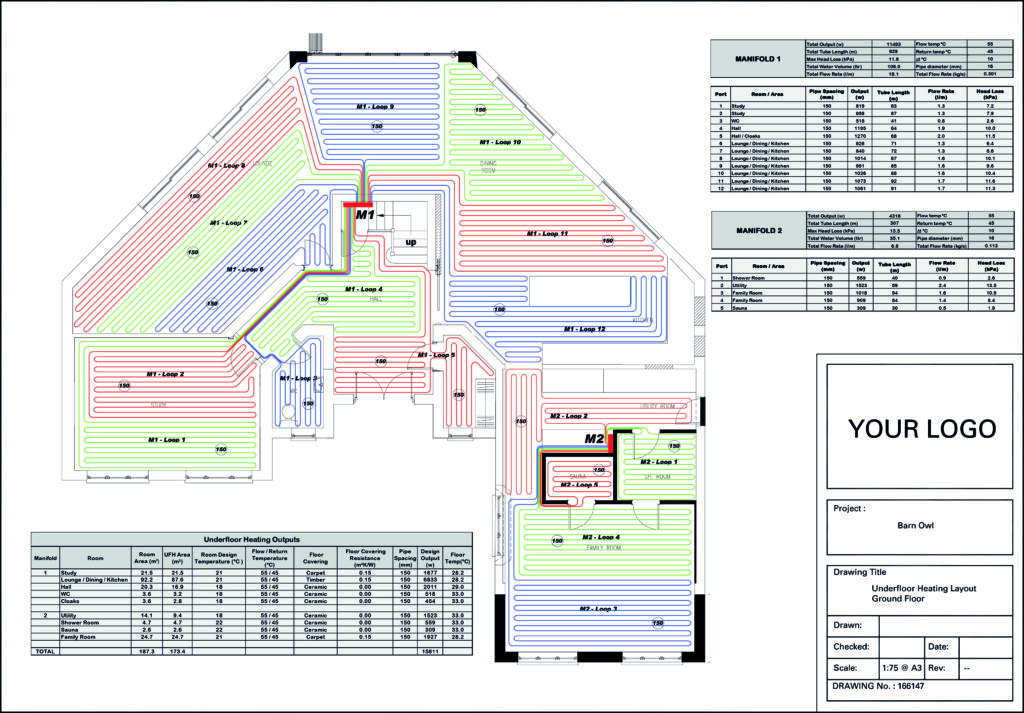

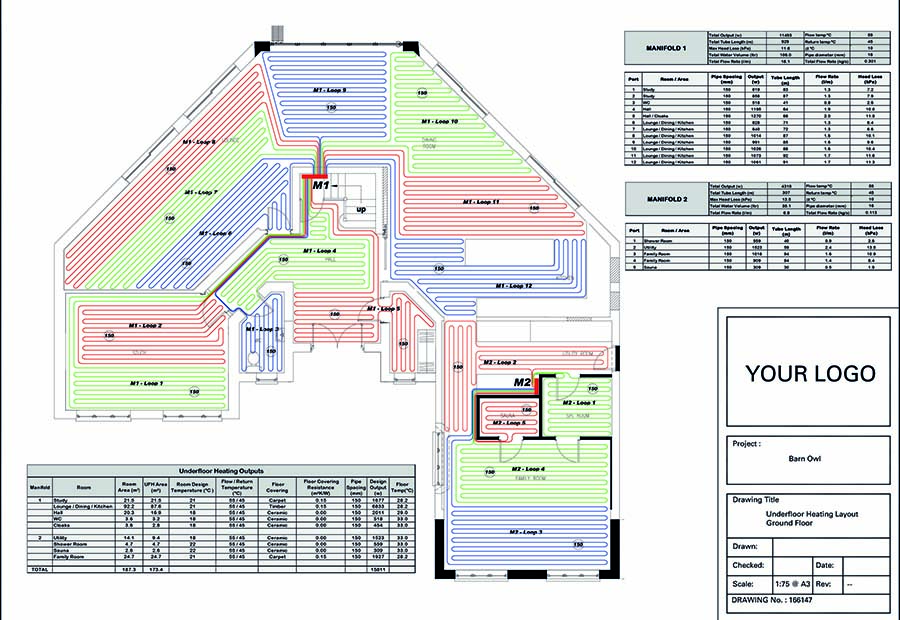

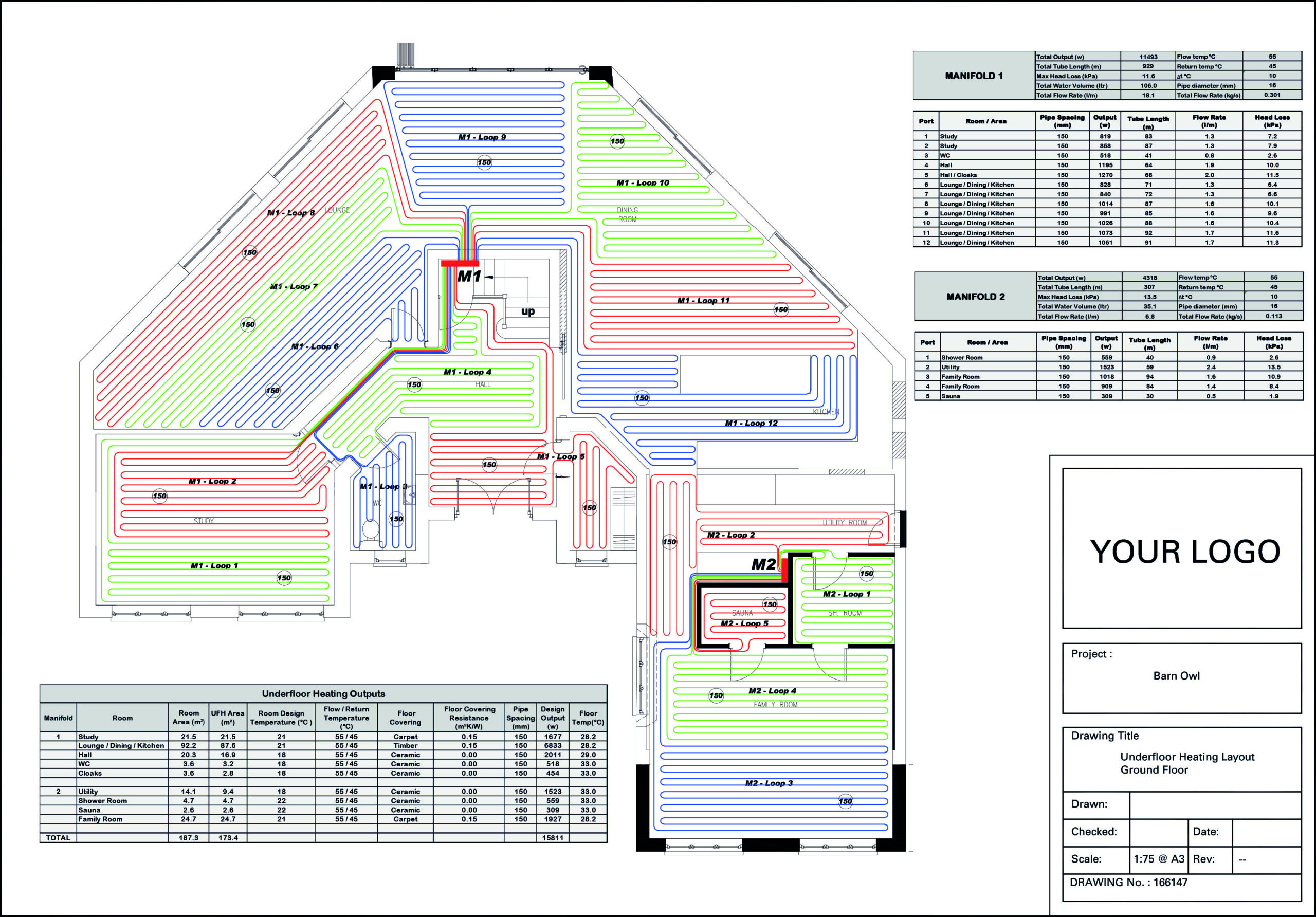

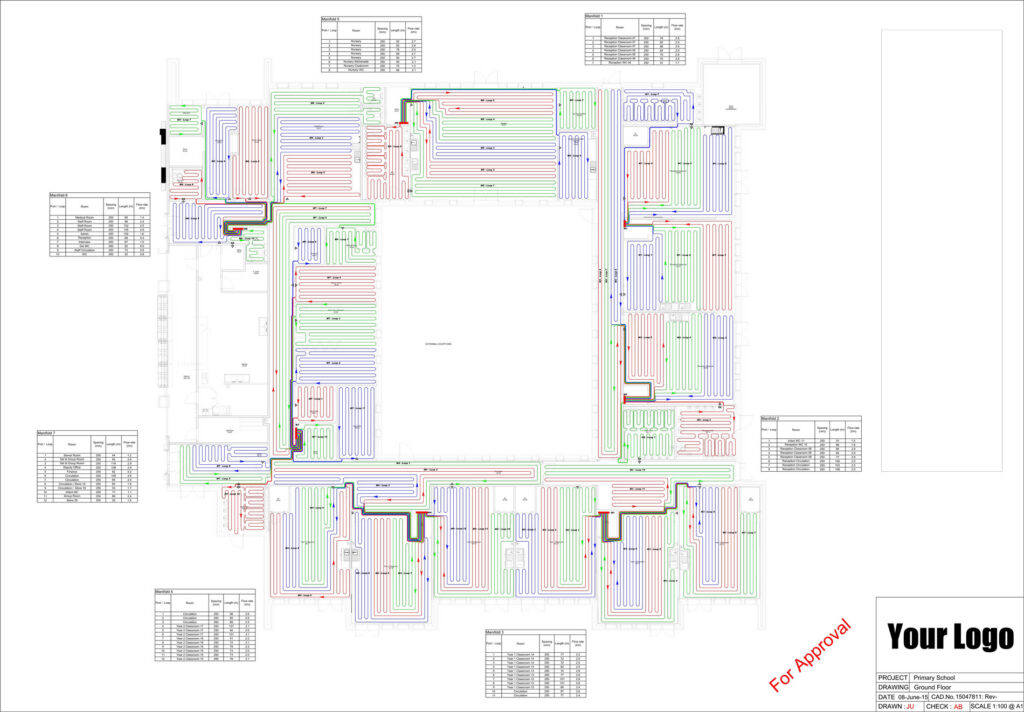

- CAD pipe layout drawings
- zoning and manifold planning
- output calculations in accordance with BS EN1264 and CIBSE Standards
- documentation suitable for installation teams
- domestic and commercial-ready packages
Request UFH CAD Design Support for Your Contracting Projects
This service is intended for trade contractors and developers — not homeowners or self-builders.
Get in touch to discuss your project requirements and receive a quote.
