UFH CAD Design for Screeding Companies
Screeding contractors are increasingly providing complete floor packages, including underfloor heating. UFH CAD Designs supports this with white-label UFH CAD layouts and performance calculations, delivered quickly and professionally.
We work with screeding companies across the UK, providing an outsourced design service that helps you add margin while keeping projects moving.
Supporting Screeders Offering Complete UFH Packages
Traditionally, UFH would be installed by a plumber or heating engineer before screed is laid.
Today, many screeding companies are expanding into UFH supply and installation — and the key requirement is accurate, compliant design.
We help screeders by providing:
- installer-friendly pipe layout drawings
- zoning and manifold planning
- fast turnaround for urgent site timelines
- designs produced entirely in-house
White-Label Designs You Can Deliver as Your Own
All work can be supplied fully white-label, allowing you to:
- present UFH designs under your own branding
- provide a complete client-facing package
- maintain control of the project and relationship
Our work is covered by our professional indemnity insurance and is 100% confidential.
Designed for Real-World Time Pressures
Screed dates are often fixed — and UFH layouts are sometimes required at short notice.
Our in-house UK team is structured to deliver designs quickly, often on a next-working-day basis when information is available.
What You Receive
Our UFH CAD design service for screeders typically includes:

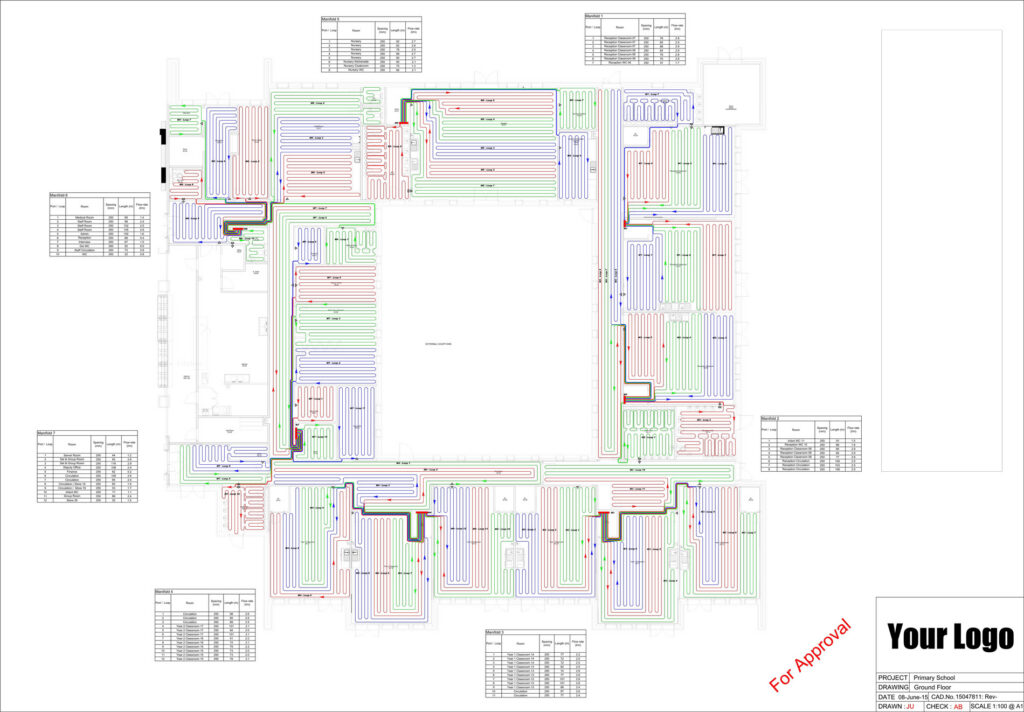

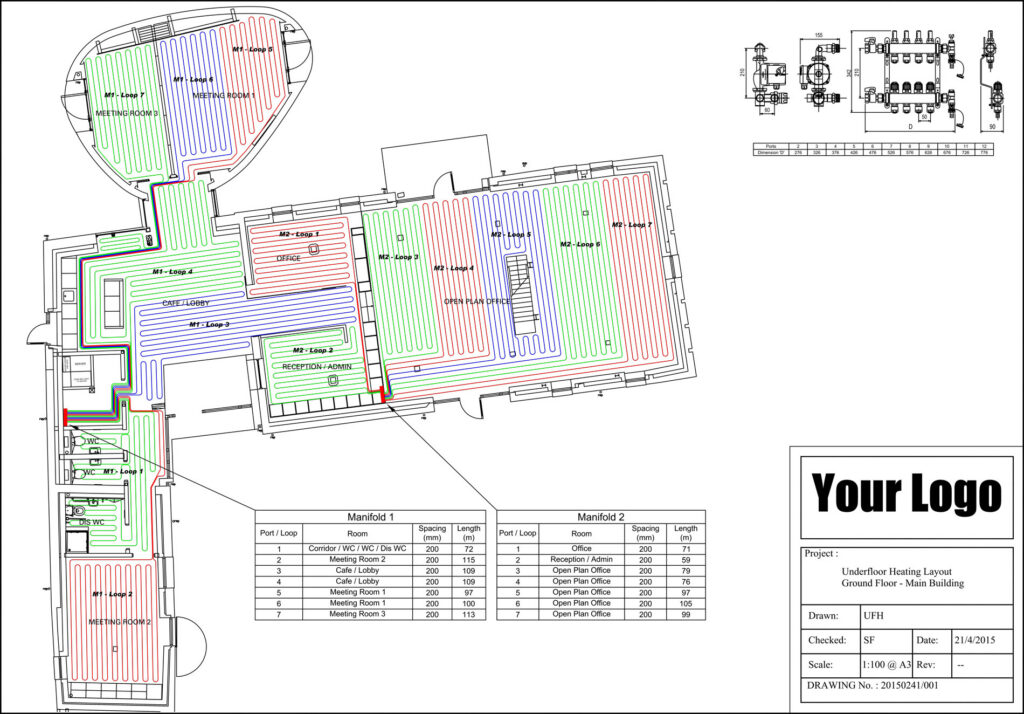

- CAD pipe layout drawings
- zoning layouts and circuit routing
- manifold positioning plans
- output calculations in accordance with BS EN1264 and CIBSE Standards
- documents ready for site installation
